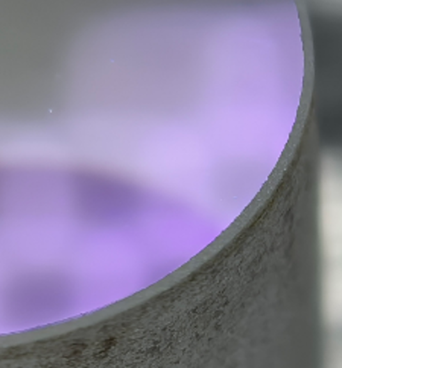

Cylinder window
Optical window in the shape of a rod with both surfaces polished.
Part details
Material :
Optical glass : D-LAF50 /H-ZPK1A / N-LAK12
Manufacturing process :
Precision optics manufacturing
Dimensions:
Custom dimensions : D18mm, length 30mm +/-0.1mm
Shape :
Cylinder
Aspect:
Flatness: 1/10 wave [email protected] nm
Parallelism : better than 1 arc.min
Optical treatment :
AR coating : Ravg lower than 0.5% @ 500-825 nm, with 0° angle of incidence.
Usage :
Microscopy, nanometric solutions device.
