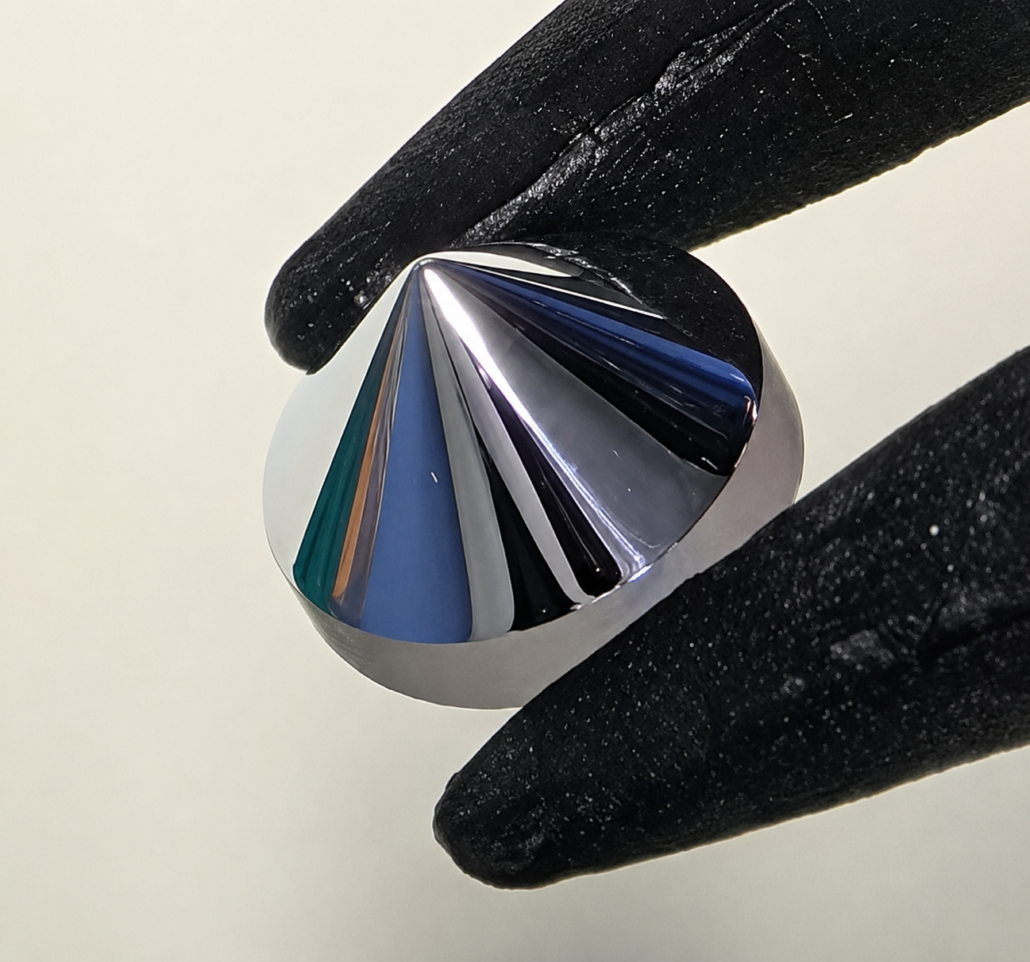

Axicon mirror

Conical optical mirror

Part details

Material :

Substrate in H-K9L

Manufacturing process :

Precision optics manufacturing + high reflective coating

Dimensions:

4.5mm diameter +/- 0.2mm

Cone angle : 90° +/- 0.2°

Shape :

Round cone

Optical treatment :

High reflective protected aluminium

Usage :

Research, experimental set-up for reflecting LED 630nm light, application is for civil aircrafts.

Review our article on different types of optical prisms.

Similar parts : cone mirror; axicon
