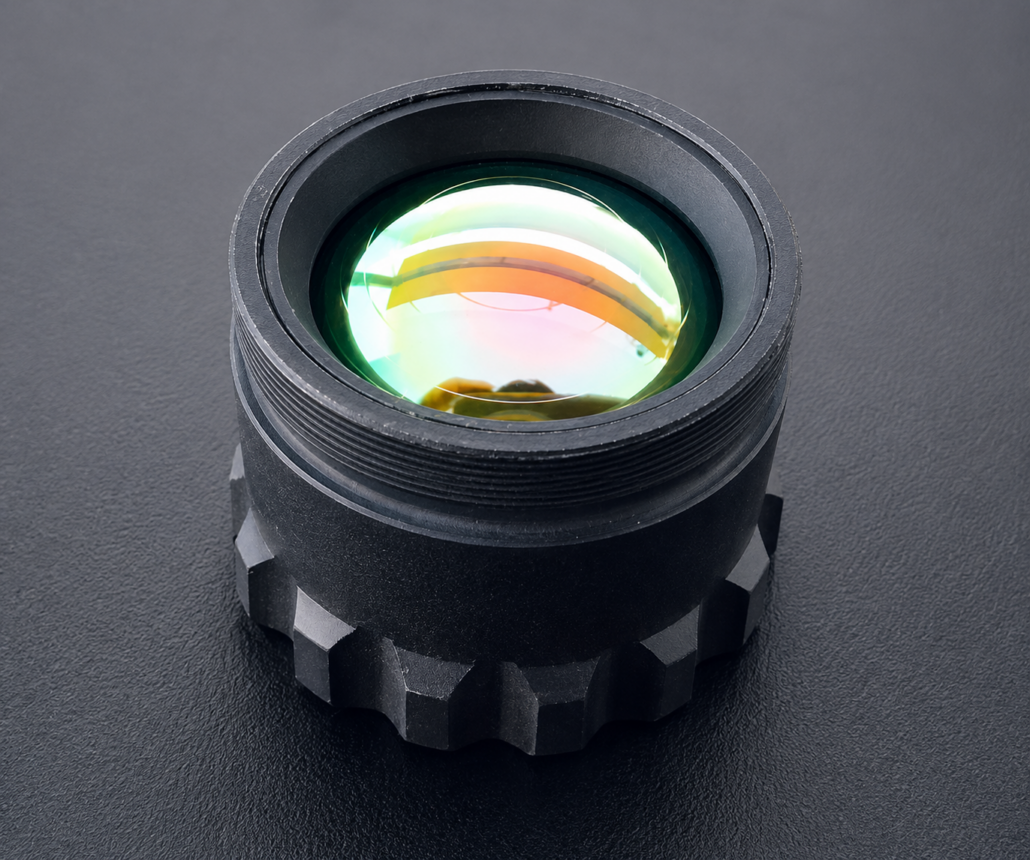

LWIR lens

Chalcogenide glass lens + aluminium mechanical mount

Part details

Material :

Chalcogenide glass for the optical component, and anodised aluminium for the mount.

Manufacturing process :

Precision IR optics manufacturing, Aluminium CNC + anodisation and final assembly.

Dimensions:

28 x 26 mm

M25x0.75-6g thread for assembly, and knurling for easy part grabbing.

Specifications :

F#1.2

Working wavelength : 8-12µm (Thermal IR) with a transmission of more than 92% on this spectrum.

Optical treatment :

None

Usage :

LWIR (Long Wave Infrared) lens for thermal sensor.

Ask us for custom dimensions.
