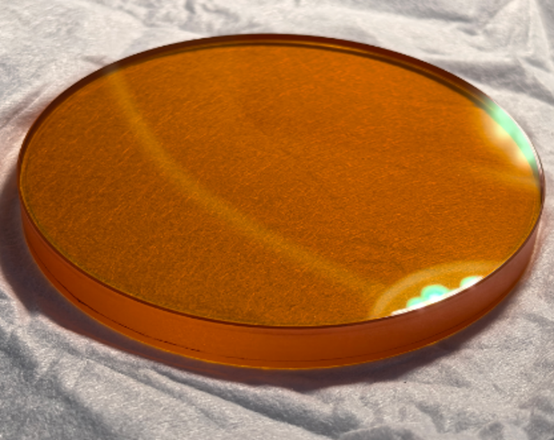

CO2 laser window
Zinc Selenide optics for 10.6 µm lasers
Part details
Material :
Manufacturing process :
Precision optical polishing + Anti-Reflective coating
Dimensions:
D100mm (+/-0.2mm) , thickness 10mm (+/- 0.2mm)
Shape & aspect :
Flat round disc with chamfers, yellow/orange color
Surface quality :
S/D: 60-40
Parallelism : better than 3′
Optical treatment :
Anti-reflective coating centered @10.6 µm (CO2 laser emiting wavelength)
Resistance to 8W laser power
Usage :
CO2 laser protective window, for engraving in a research institute.
