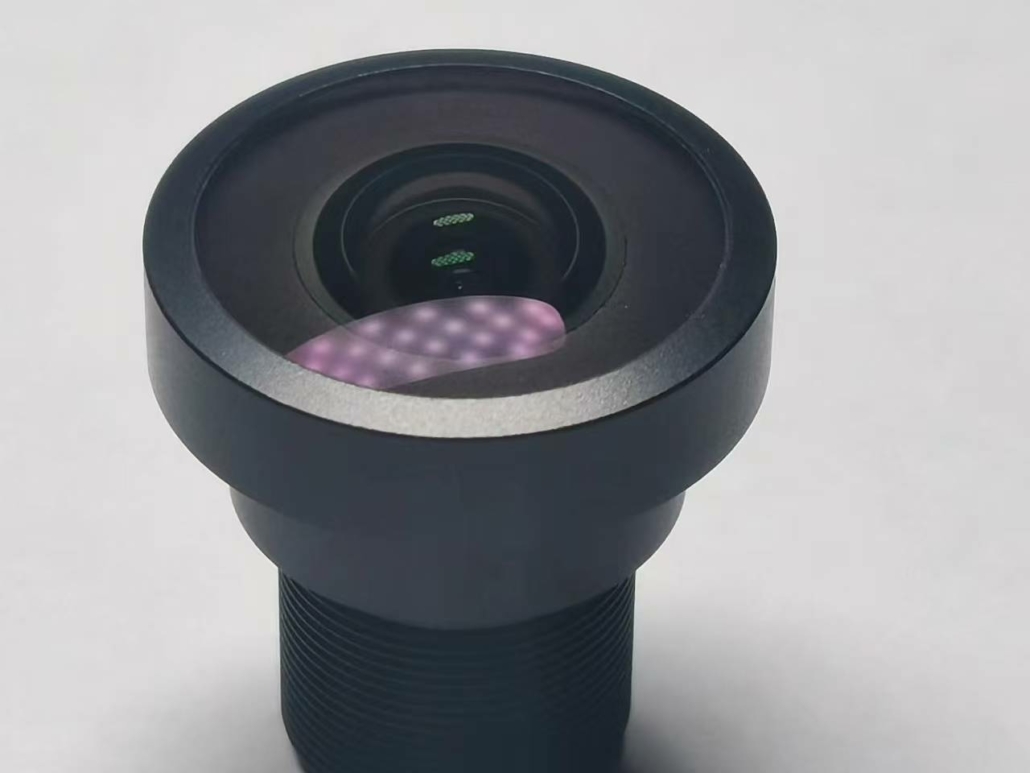

Automotive rear camera lens

Rear view high angle backup camera objective

Part details

Material :

Optical glass and anodized aluminium

Manufacturing process :

Precision optical manufacturing for the lens and opto-mechanical assembly in the CNC machined aluminium mounts.

Dimensions:

D20mm x 25mm total length

Sensing area :

1/4 ”

Focal length :

1.7 mm

Mechanical BFM :

2.2 mm

Max. relative aperture (F/No):

2.0

Field :

94° (vertical) / 131° (horizontal) / 182° (diagonal)

Optical distortion :

-102%

Mount :

M12x0.5  (can be customized

Operating conditions:

-20° –  +80°

Totally watertight (IP67)

Usage :

Enable large angle view of the rear of a car for rear parking / automatic parking sensors (ADAS).
