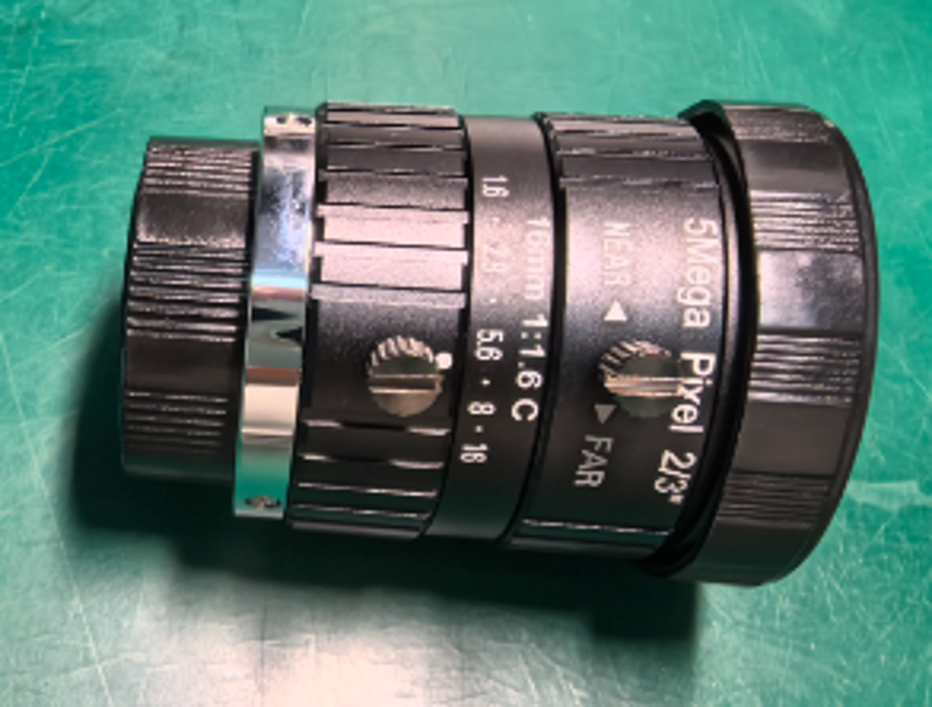

Focal 16 mm objective
FA1616 (5MP) objective
Specifications
| Category | Parameters |
|---|---|
| Model ref | FA1616/5MP |
| Focal length | 16 mm |
| Format | 2/3″ (diam 11, 8.8×6.6) |
| D/f’ | F1.6-F16 |
| Mount | C-mount |
| H/V | 2/3″: 30.0 °x22.7 ° 1/1.8″: 24.7 °x18.6 ° 1/2″: 22.0 °x16.6 ° |
| Back focal length | 17.53 mm |
| Optical length | 54.03 mm |
| Iris | Manual |
| MTF | 5 MP |
| M.O.D. | 0.15 m |

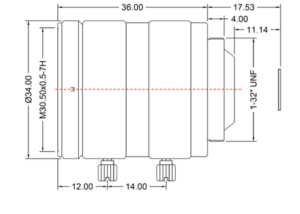

| External dimensions | Diameter 36 mm x 36.5 mm length |
| Weight | 76 g |
| Distortion | 0.2 % |
| Casing | black anodised aluminium |
| Filter mount | M30.5×0.5p |
